Manufacturers often face a stark disconnect between theoretical spec sheets and 24/7 production reality. You might read your machine handles heavy-duty structural steel seamlessly. However, real-world shop operations often reveal a different story entirely. Selecting an undersized machine leads to accelerated tooling wear and constant production bottlenecks. Conversely, over-specifying your equipment wastes critical capital and unnecessarily inflates your facility footprint. Striking the right structural balance is essential for long-term fabrication success. We designed this comprehensive guide to help you navigate these complex sizing challenges effectively. You will learn an evidence-based framework for evaluating the true processing limits of CNC angle equipment today. We will explore exactly how material grade, hydraulic tonnage, and material handling capabilities dictate shop floor performance. Armed with this knowledge, you can confidently match heavy machinery to your specific daily production demands.
Standard lines typically process angles from 1.5" x 1.5" x 1/8" (L40x40x4) up to 8" x 8" x 1" (L200x200x25), with specialized machines handling up to 10" x 10" (L250x250x28).
Maximum processing capacity is strictly dictated by the material’s yield strength; specs rated for mild steel (A36) will not apply to high-tensile grades (A572 Grade 50+).
The limits of reliability are often found at the extremes: minimum sizes cause clamping/feeding slippage, while maximum sizes test shear blade integrity and hydraulic tonnage limits.
Evaluating a machine requires assessing the 1:1 rule for punching (hole diameter vs. material thickness) alongside shear tonnage capabilities.

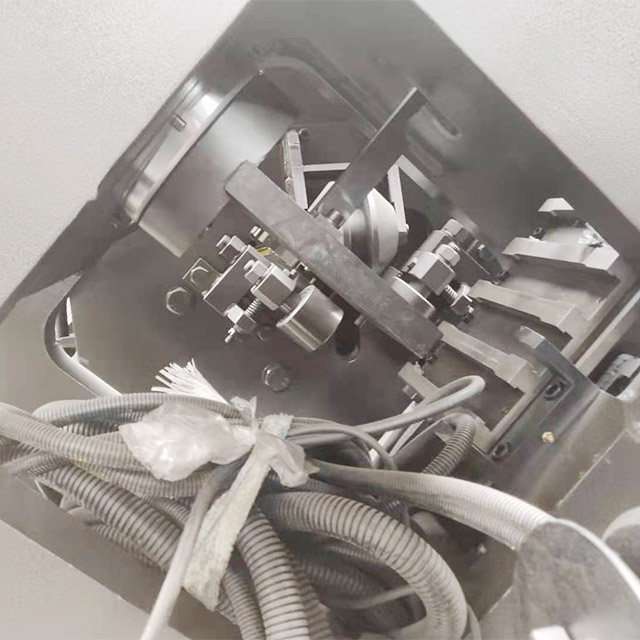

A reliable CNC angle processing line serves as the backbone of structural fabrication. These systems fall into three primary size tiers. Light-duty machines handle profiles up to 4" x 4". Medium-duty systems process material up to 6" x 6". Heavy-duty platforms manage 8" x 8" angles and beyond. Understanding these spectrums helps you align machinery to your typical project requirements.
You must distinguish between continuous capacity and peak capacity. Spec sheets usually highlight peak capacity. This number represents the absolute maximum size the machine can process safely. However, running a machine at 100% capacity continuously causes problems. It leads to premature hydraulic fatigue. The structural frame experiences excessive micro-stresses. Your shear blades will degrade rapidly. We always advise treating peak capacity as an occasional capability rather than a daily baseline.
Industry veterans rely on the 80/20 production rule for sizing equipment. This framework prevents chronic machine overload. Here are the core principles of this approach:
Assess Daily Volume: Determine the angle size you process most frequently.
Target Mid-Range: Ensure 80% of your daily throughput falls into the machine’s mid-range capacity.
Reserve Peak Power: Save the top 20% of the machine's capacity for occasional heavy jobs.
Optimize Cycle Times: Mid-range processing allows the machine to cycle faster without bogging down hydraulics.
Following this rule optimizes your tooling lifespan. It keeps your shop running without unexpected downtime.
Table: Equipment Size Tiers and Typical Applications
Machine Tier | Maximum Angle Size | Common Applications | Ideal Continuous Load |
|---|---|---|---|
Light-Duty | 4" x 4" x 3/8" | Bracing, handrails, light frames | 3" x 3" profiles |
Medium-Duty | 6" x 6" x 5/8" | Trusses, medium structural supports | 4" x 4" to 5" x 5" profiles |
Heavy-Duty | 8" x 8" x 1" (or higher) | Transmission towers, heavy bridges | 6" x 6" to 7" x 7" profiles |
You cannot evaluate a CNC Angle Punching Shearing Marking Line using physical dimensions alone. Material yield strength plays a massive role in actual processing capacity. Most manufacturers rate their equipment based on mild steel. This is typically A36 steel. A36 has a yield strength of 36,000 PSI. Modern construction often demands higher strength materials. A572 Grade 50 steel is very common today. It boasts a yield strength of 50,000 PSI. Processing Grade 50 dramatically reduces your reliable maximum thickness capacity.
For example, a machine rated to shear 1-inch A36 steel will struggle with 1-inch Grade 50 steel. The hydraulic system might stall. You risk fracturing the shear blade. You must de-rate the machine's maximum capacity when processing high-tensile grades.
Shear mechanics also define your processing limits. Machines use either single-cut or double-cut shearing mechanisms. We see distinct advantages for each type:
Single-Cut Shearing: This method functions like a guillotine. It creates zero material waste. However, it requires massive hydraulic tonnage for large angles. It can also distort the ends of thick profiles.
Double-Cut Shearing: This method uses two blades to remove a small slug of material. It requires significantly less tonnage. It prevents material distortion on heavy profiles. It yields perfectly square cuts every time.
Punching physics introduce another critical limit known as the 1:1 rule. This industry standard dictates punch sizing. The hole diameter should never be less than the material thickness. If you punch a 1/2-inch hole in 3/4-inch plate, the punch will likely snap. The compressive forces exceed the tooling's structural integrity. This rule strictly limits your minimum punch sizes on maximum-thickness angle iron. You must verify your engineering drawings against this physical limitation before bidding on heavy jobs.
Machine reliability drops significantly at the extreme ends of the size spectrum. The physical realities of moving steel dictate these boundaries. You must handle both ends carefully.
Small angles introduce unique material handling challenges. Profiles like 1.5" x 1.5" x 1/8" lack rigidity. Pinch rollers often struggle to grip these small profiles properly. If the machine applies standard clamping pressure, the steel bends out of shape. If you reduce the pressure, the material slips during feeding. Slippage destroys your longitudinal accuracy.
Tooling clearance becomes another major hurdle. A 1.5-inch leg provides very little working space. The punch block requires physical clearance to operate. Limited leg width increases the risk of tooling collisions. The punch might scrape the adjacent leg of the angle. Misaligned holes become a frequent problem on minimum-size materials. Operators must set up these runs with extreme precision.
Processing massive profiles introduces completely different threats. Heavy angles are incredibly difficult to maneuver safely. A 60-foot length of 8" x 8" x 1" steel is remarkably heavy. Long pieces tend to bow naturally under their own weight. This bowing disrupts the CNC X-axis measuring system. The machine assumes the material is perfectly straight. If the bar sags, your hole placements will drift out of tolerance. You need robust, active infeed conveyors to support this weight perfectly.
The drop-end weight creates another severe hazard. When the shear cycles on a heavy angle, the severed piece drops. An unsupported heavy drop can easily crush outfeed tables. It causes intense shockwaves through the machine frame. More importantly, it creates unsafe working conditions for your operators. You must implement heavy-duty mechanized outfeed systems to manage maximum-sized structural pieces safely.
Purchasing an angle steel punching line requires careful application matching. You need predictable baseline tolerances. Most quality machines hold tolerances of ± 1/32" (or ± 1mm) over a specified length. However, processing at maximum capacity impacts this baseline. Heavy cuts shift the material slightly in the clamps. The impact of a maximum-tonnage punch can cause micro-movements. You should expect wider tolerance bands when pushing the equipment to its absolute limits.
Tooling setup directly dictates your daily profitability. You will frequently switch between maximum-size structural supports and minimum-size bracing. Look closely at the die changeover process. Traditional setups take significant time and effort. Operators must unbolt heavy blocks and realign everything manually. We strongly recommend seeking quick-change tooling features. These systems use locking mechanisms to swap punches in seconds. They keep your machine running rather than sitting idle during transitions.
Marking system legibility is another critical evaluation point. Structural steel often requires galvanizing or heavy industrial painting. These coatings fill in shallow stamps easily. Ensure the hydraulic or pneumatic marking station delivers sufficient force. It must stamp characters deeply into the steel. The marks must remain visible after final finishing, regardless of the material thickness. Testing this capability using your specific steel grade prevents downstream identification failures.
Specialized sectors demand highly scaled equipment. A steel tower angle machine operates under extreme requirements. Transmission towers and telecom fabrication require aggressive hole patterns. These structures use heavy steel to withstand wind and ice loads. You cannot process these parts efficiently with single-punch setups. Tower fabrication demands high-tonnage multi-punch configurations. These machines punch multiple holes simultaneously across both legs of the angle. They offer unmatched throughput for repetitive tower designs.
Implementing these massive systems requires significant facility planning. You must account for the total systemic footprint. The machine itself is just one component. A line processing 60-foot lengths of heavy angle requires up to 140 feet of linear floor space. You must accommodate the infeed track, the machine center, and the outfeed zone. Additionally, you need cross-transfer systems for loading raw stock and unloading finished parts. Proper material handling prevents the machine from starving for material.
Utility demands scale alongside machine size. You cannot place a heavy-duty line on a standard warehouse floor. These machines require reinforced concrete foundations. The concrete must absorb intense shearing vibrations without cracking. Electrical phase balancing is critical for the massive hydraulic motors. Furthermore, continuous hydraulic operation generates significant heat. You will likely need industrial chiller units to maintain optimal hydraulic oil temperatures. Proper implementation ensures the machinery runs reliably across multiple shifts.
Reliable processing size is a complex matrix of physical dimensions, material yield strength, and hydraulic tonnage. You cannot rely on dimensional spec sheets alone. Processing extreme minimums causes clamping slippage and tooling collisions. Pushing maximum limits tests your material support systems and hydraulic power. Always apply the 1:1 punching rule and respect the limitations of high-tensile material grades.
We advise operational leaders to take proactive steps before finalizing procurement. Request a documented time study from the manufacturer. Demand a sample test cut using your specific, highest-tensile material. Witnessing the machine handle your actual daily profiles provides ultimate peace of mind. By verifying these capabilities firsthand, you ensure a profitable and reliable fabrication workflow for years to come.
A: It depends heavily on the shear design and material grade. Single-cut shears may cause distortion on thicker materials. Double-cut shears prevent distortion by removing a small slug. Standard heavy-duty lines typically max out around 1" (25mm) for mild steel without causing noticeable deformation.
A: Yes, they can process uneven leg angles. However, it requires specific clamping setups. You must use programmable datum references within the software. This ensures accurate punching on offset legs and maintains longitudinal precision throughout the processing cycle.
A: Yes, it certainly does. Heavier materials bow under their own weight. They require superior active infeed support to prevent sagging. If the material sags, it pulls out of square with the measuring system. This directly compromises your longitudinal hole tolerance.
