Inconsistent hole spacing in angle steel is rarely just a localized machining error. It acts as a compounding cost destroying margins during downstream assembly. When bolt holes misalign, crews resort to forced manual reaming. Sometimes they rely on dangerous on-site welding. Manual and semi-automatic feeding methods inherently suffer from operator fatigue. Cumulative measurement drift inevitably occurs over long production shifts. Modern high-volume structural fabrication demands precision scaling beyond human limits. Relying on tape measures and manual stops invites costly assembly rework.
Transitioning to fully automated systems represents a necessary leap for verifiable accuracy. Modern CNC integration entirely removes human error from material indexing. It ensures every punched hole aligns perfectly with your original CAD model. You will learn the mechanics driving these automated systems. We will also explore core evaluation criteria for selecting machinery. Finally, you will discover the operational realities of implementing advanced angle processing automation on your shop floor.
Automated feeding mechanisms rely on closed-loop servo systems to eliminate cumulative measurement errors, ensuring tight hole-to-hole tolerances.
Evaluating a CNC angle processing line requires looking beyond top speed; grip consistency, software integration, and tooling rigidity dictate actual operational yield.
Implementing this equipment requires a realistic assessment of floor space, material handling (infeed/outfeed), and operator training for CNC software.
The primary ROI driver is the elimination of downstream assembly rework, particularly in high-precision sectors like power transmission and telecom towers.
Hole alignment dictates the rhythm of the entire structural assembly process. A minor drift at the fabrication stage creates massive bottlenecks during erection. Consider a standard six-meter angle iron requiring multiple bolt holes. A mere one-millimeter deviation in the initial punch spacing seems negligible. However, this error compounds as the material moves manually through the punch station. By the time operators punch the final hole, the cumulative drift often exceeds acceptable tolerances. Field crews cannot simply force bolts through misaligned connections. They must halt assembly, secure the structure, and manually ream the holes to fit.
Scrap generation directly impacts your raw material budget. High-grade structural steel requires significant capital investment. Punching holes out of tolerance instantly degrades premium angle profiles into useless scrap. Reworking these profiles consumes valuable machine time. You also lose the direct cost of the scrapped material. Fabrication shops operating under tight margins cannot afford to throw away valuable inventory. Material waste scales rapidly when running high-volume batches on poorly calibrated semi-automatic lines.
Operator dependency introduces unpredictable variables into your daily throughput. Manual indexing relies entirely on human focus. Accuracy and speed naturally fluctuate based on shift changes. Fatigue sets in during the final hours of the workday. One operator might feed material aggressively, while another moves cautiously. This inconsistency makes production scheduling nearly impossible. You cannot accurately predict daily output when throughput relies heavily on individual stamina. Replacing manual pushing with automated indexing stabilizes your entire production timeline.
A reliable CNC angle processing line operates on principles of continuous feedback. Automated feeders utilize closed-loop servo control systems. Servo motors drive the material forward along the linear axis. Rotary encoders pair directly with these motors. Encoders provide real-time position verification back to the main controller. If the actual physical position deviates from the digital command, the system instantly corrects it. This closed-loop communication eliminates cumulative drift entirely.

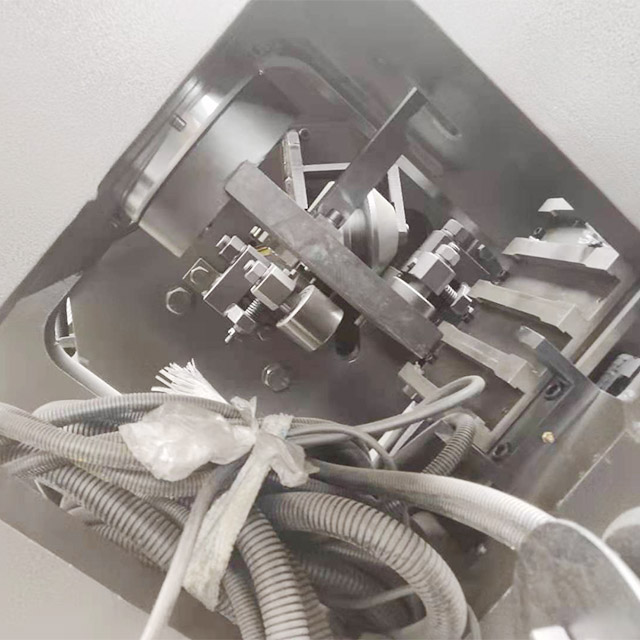

The hydraulic gripper carriage serves as the physical bridge between the servo motor and the steel. This mechanism requires immense clamping force. Consistent hydraulic pressure prevents the heavy angle iron from slipping. Slippage during rapid feeding or sudden deceleration ruins positioning accuracy. High-quality carriages use grooved clamping pads. They secure the material firmly without deforming the structural profile.
To understand the continuous operation, we can break down the multi-axis synchronization process:
The CNC controller reads the digital coordinates from the imported fabrication file.
The feeding carriage accelerates the material toward the initial punch zone.
Sensors signal the exact stopping point, and the hydraulic clamps hold the steel rigidly.
Punching cylinders engage automatically, completing the hole sequence in milliseconds.
The shearing station cuts the profile to length simultaneously, avoiding manual pauses.
Marking integration further enhances field assembly speed. Automated feeding systems synchronize character stamping perfectly with the punched holes. The controller spaces part identification marks at precise intervals. Field workers can easily read these stamps during erection. Clear, accurate part identification reduces sorting time on the construction site.
Machine manufacturers often highlight maximum feed speeds in their technical brochures. However, raw speed means nothing without stopping accuracy. A feed speed of forty meters per minute sounds impressive. It only delivers value if the carriage stopping accuracy remains consistently within ±0.5mm. You must evaluate positioning accuracy against the listed feed speed. Heavy steel profiles carry significant momentum. The servo system must decelerate and stop the material precisely. When evaluating an angle steel punching line, always demand accuracy verification under full load.
Chart: Performance Matrix for Automated Feeding Configurations
Feeding System Type | Average Speed (m/min) | Positioning Accuracy (mm) | Ideal Application |
|---|---|---|---|
Manual/Semi-Auto Stops | 10 - 15 | ± 1.5 to 2.0 | Low-volume, simple fabrication |
Open-Loop Stepper Motor | 20 - 30 | ± 1.0 | Mid-volume, standard tolerance |
Closed-Loop Servo Drive | 40 - 60+ | ± 0.5 or better | High-volume, structural/tower specs |
Software integration acts as the brain of the operation. Modern fabrication shops rely heavily on 3D detailing software like Tekla Structures. The machine controller must accept direct DSTV or NC1 file imports. Translating 3D models directly into feeding and punching coordinates eliminates manual data entry. Manual programming at the machine console wastes time and introduces typo errors. Seamless CAD integration translates directly into higher daily uptime.
You must also scrutinize material handling capabilities. Evaluate the load capacity of the infeed conveyors. The lateral loading arms must lift heavy bundles of angle iron without stressing the hydraulic pumps. Weak loading mechanisms cause frequent breakdowns. Finally, assess tooling changeover efficiency. Operators frequently switch between different hole diameters. Quick-change punch and die sets minimize downtime during these transitions. Complex tooling swaps eat into your profitable processing hours.
Even the most advanced CNC Angle Punching Shearing Marking Line cannot fix fundamentally flawed raw material. You must acknowledge the reality of material camber. Severely bowed or twisted angle iron frequently jams automatic feeders. The hydraulic rollers cannot properly align warped steel. You need strict incoming material quality standards. Reject bundles exhibiting severe twist before they reach the loading rack. Pre-sorting material prevents unexpected downtime and protects your internal machine components.
Long-term precision requires strict calibration and maintenance regimens. Automatic feeding systems rely on pristine mechanical pathways. Consider these daily maintenance requirements to protect your investment:
Wipe down linear guideways to remove abrasive metal shavings.
Inspect the hydraulic gripper pads for premature wear or loss of grip.
Clean the optical sensor lenses to ensure accurate part detection.
Verify the encoder feedback loops are free from metallic dust buildup.
The transition to automated equipment alters the operator learning curve. Management must shift focus from physical labor capabilities to CNC software management. Operators no longer push steel. They monitor diagnostics. Basic training should cover reading CNC fault codes. Operators must understand how to navigate nesting software interfaces. They need to interpret digital error logs when a servo trips or a limit switch fails. Investing in comprehensive software training ensures smoother daily operations. Skilled CNC operators troubleshoot minor issues before calling external service technicians.
Matching the equipment scale to your specific production niche ensures optimal efficiency. High-volume transmission tower fabrication demands extreme heavy-duty processing. A dedicated steel tower angle machine must handle massive L140 to L200+ profiles. These structures require multi-gauge punching across thick steel flanges. Severe load-bearing tolerances are absolutely mandatory in power transmission. The machine frame requires exceptional rigidity. It must withstand the violent shockwaves generated by punching through high-tensile steel all day.
Conversely, HVAC applications and light structural frameworks require a different approach. These sectors typically process lighter L30 to L80 profiles. In these environments, high-speed continuous feeding outweighs maximum shearing force. You want rapid carriage movement. The cylinders should stroke quickly. The overall cycle time dictates profitability in light gauge processing. Buying an oversized machine for HVAC work wastes capital and slows down production.
Table: Sizing Guidelines based on Application Profiles
Industry Application | Common Angle Profiles | Primary Machine Focus | Typical Punch Capacity |
|---|---|---|---|
HVAC & Duct Supports | L30 - L60 | High feed speed, rapid cycling | Single/Double punch per side |
Commercial Steel Frames | L60 - L120 | Balanced speed and force | Double punch, quick change tooling |
Power Transmission Towers | L140 - L200+ | Maximum rigidity, multi-gauge | Triple punch, heavy tonnage shearing |
Floor space requirements often surprise first-time buyers. Capacity dictates the footprint. Calculate the required floor space carefully. An automated infeed and outfeed system generally doubles the physical footprint of the actual machine body. A twelve-meter processing line requires at least twenty-six meters of clear factory floor. Do not constrain the outfeed zone. Finished parts need room to eject properly without causing bottlenecks. Proper spatial planning ensures forklifts can access the loading racks safely.
Automated feeding guarantees predictable and scalable output. Replacing manual indexing protects your downstream assembly margins from costly rework. Precision hole spacing ensures your field crews bolt structures together flawlessly. High-quality structural fabrication depends entirely on repeatable accuracy.
When evaluating new equipment, look past the basic brochure specifications. Demand real-world time studies from the manufacturer. Request accuracy capability tests using your own specific CAD files. Verifying servo performance under actual load conditions proves the true value of the equipment.
Take proactive steps to upgrade your fabrication floor today. Schedule a dedicated technical consultation with a CNC machinery expert. Request a sample processing run to verify feeding accuracy on your standard factory materials. Transitioning to closed-loop automation secures your competitive edge in a demanding market.
A: Slippage causes immediate positional errors. Quality machines mitigate this with high-pressure hydraulic clamps and grooved gripper pads, monitored by closed-loop encoders that detect discrepancies between motor turns and actual linear movement.
A: Yes, but it requires setup. While the CNC controls the feeding length automatically, physical adjustments to the infeed guides, roller clearances, and tooling sets are necessary when changing material profiles (e.g., switching from 50x50mm to 100x100mm).
A: Most structural fabrication lines accept DSTV or NC1 files generated by standard 3D detailing software (like Tekla Structures or AutoCAD). The machine's proprietary CNC software then nests these files for optimal material yield.
A: Baseline calibration is typically performed during installation. However, regular verification (e.g., weekly test pieces) is recommended, alongside daily cleaning of the linear guides and sensors to prevent false readings from metal dust buildup.
