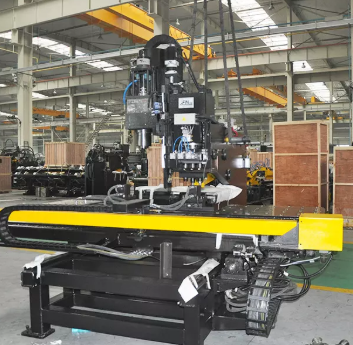

The PPHD153 CNC High Speed Punching and Drilling and Marking Machine is a multifunctional industrial equipment designed for processing small and medium-sized plates in the steel structure, electric power, and automobile industries. Integrating punching, drilling, and marking into one seamless workflow, this machine delivers high speed, precision, and versatility, eliminating the need for multiple devices and reducing production costs. It is an ideal choice for businesses seeking efficient and integrated plate processing solutions.
The machine realizes three core processes in one clamping, avoiding repeated positioning errors and improving processing precision. It eliminates the need to transfer plates between different machines, shortening production cycles by up to 40% compared to traditional separate processing.
With a 1500KN punching force and 3000r/min spindle speed for drilling, the PPHD153 handles plates of 5-40mm thickness with ease. The 1200KN marking force ensures clear and durable character marking, meeting the traceability requirements of industrial products.
It supports plates with a maximum size of 1800×800mm and thickness range of 5-40mm (max 25mm for punching, max 50mm for drilling). Compatible with Q235 steel, 16Mn steel, and other common industrial materials, it adapts to diverse processing needs.
Equipped with a high-performance CNC system and Panasonics AC servo motors, the machine achieves precise positioning of X/Y/Z axes. The X-axis travel of 2450mm (15m/min) and Y-axis travel of 800mm (15m/min) ensure efficient coverage of large-format plates, while the Z-axis travel of 300mm (5m/min) adapts to different processing depths.
Each machine comes with a complete set of free accessories, including 9 test run dies, 6 test punches, drilling tool holders, marking cassettes, and detailed operation manuals. This "ready-to-use" package reduces additional investment and accelerates production startup.
The PPHD153 adopts renowned brand components for reliability: HIWIN/PMI linear guide rails (Taiwan, China) for smooth axis movement, Albert oil pump (USA) for stable hydraulic power, Atos electromagnetic valves (Italy) for precise control, Panasonics AC servo motors (Japan) for high torque output, and Mitsubishi PLC (Japan) for intelligent operation.
Each machine undergoes strict factory testing, including performance load tests, precision calibration, and durability trials. The rigid machine frame and anti-vibration design ensure stable operation under high-speed processing, while the corrosion-resistant paint extends service life in harsh industrial environments.
Steel Structure Manufacturing: Processes plates for building frames, bridge components, and steel supports, ensuring precise hole positioning for assembly.
Electric Power Industry: Produces plates for power distribution cabinets, transformer brackets, and transmission tower parts, meeting high-precision requirements.
Automobile Industry: Processes small and medium-sized plates for auto bodies, engine brackets, and chassis components, supporting mass production.
Mechanical Manufacturing: Suitable for plate processing in agricultural machinery, construction machinery, and hardware tools.
Custom Processing Services: Ideal for small-batch, high-precision plate processing needs in prototype development and custom manufacturing.
Elevate your plate processing efficiency with the PPHD153! Inquire for a personalized quote or Add to Basket today to take advantage of our limited-time offers. Our after-sales team provides:
Professional on-site installation, debugging, and performance optimization.
Comprehensive training for operators and maintenance personnel.
1-year warranty covering core components and free technical consultation.
Fast supply of genuine spare parts to minimize downtime.
Lifelong maintenance services, including equipment upgrades and troubleshooting support.
Plate Size | Plate thickness range | 5～40 mm （for punching maximum 25mm; for drilling maximum 50mm） |
Max. size of Plate | 1800×800mm | |
Punching Capacity | Punching force | 1500KN |
Max hole diameter | ￠30 mm | |
Punching diameter × thickness | For Q235 steel σb≤420MPa: ￠30×25mm For 16Mn steel σb≤610MPa: ￠30×20mm | |
Min. distance between hole and plate edge | 25mm | |
Drilling Capacity | Spindle Drilling taper number | BT50 |
Drilling diameter | φ16mm-φ40mm（Carbide drill）; φ16mm-φ50mm （H.S.S. twist drill） | |
Min. distance between hole and plate edge | 30 mm | |
Max. speed of spindle: | 3000r/min | |
Clamp Number | 2 | |
Marking Capacity | Marking force | 1200KN |
Character size | 14×10mm | |
Quantity of characters | 16 | |
Quantity of CNC axis | 3 | |
Stroke of X axis-speed | 2450mm——15m/min | |
Stroke of Y axis-speed | 800mm——15m/min | |
Stroke of Z axis-speed | 300mm——5m/min | |
Motor Power | Motor power of oil pump | 22 KW |
Motor power of spindle | 15KW | |
AC servo motor power of X axis | 3KW | |
AC servo motor power of Y axis | 3KW | |
AC servo motor power of Z axis | 2KW | |
Machine Power | Total | 45KW |
Hydraulic System | Work-pressure of high-lift pump | 24MPa |
Work-pressure of low-lift pump | 6MPa | |
Type of refrigerant | Water | |
Drilling System | Using minor Oil mist cooling system | Spraying mist cooling way |
Power supply | 3 phase 4 lines | |
Voltage | 415V/ As per Purchaser’s request | |
Frequency | 50HZ/ As per Purchaser’s request | |
Overall dimensions (L×W×H) | 3620×3720×2400mm | |
Net weight of the machine | About 11500Kg |
NO. | Name | Quantity | Remark |
1 | Cassette base | 1 | |
2 | Cushion die | 1 | |
3 | Die for test run | 9 | 16－8、16－12、16－16 20－8、20－12、20－16 24－8、24－12、24－16 |
4 | Test punch | 6 | φ17.6(2)、φ21.6(2)、 φ25.6(2) |
5 | Punch rod | 2 | |
6 | Typing punch bar | 1 | |
7 | Punch nut | 3 | |
8 | Splint (upper jaw) | 2 | |
9 | Positioning block (lower jaw) | 2 | |
10 | Special spanner | 1 | |
11 | Nitrogen filling tool | 1 set | |
12 | Atlas of wearing parts | 2 volumes | |
13 | Mechanical instructions | 2 volumes | |
14 | Electrical instructions | 2 volumes | |
15 | Hydraulic instruction | 2 volumes | |
16 | Certificate | 1 volume | |
17 | Packing list | 1 volume | |
18 | Paint | 2 kegs | |
19 | Drilling tool holder | 3 pcs | |
20 | Marking Cassette | 2 pcs | |
21 | Marking Characters | 2 sets | Each set including A~Z letters and 0~9 numbers |
NO. | Name | Brand | Country |
1 | linear guide rail | HIWIN/PMI | Taiwan(China) |
2 | Oil pump | Albert | USA |
3 | Electromagnetic relief valve | Atos | Italy |
4 | Electromagnetic unloading valve | Atos | Italy |
5 | Solenoid valve | Atos | Italy |
6 | One way throttle valve | Atos | Italy |
7 | P-port throttle valve | JUSTMARK | Taiwan(China) |
8 | P port check valve | JUSTMARK | Taiwan(China) |
9 | Hydraulic control check valve | JUSTMARK | Taiwan(China) |
10 | Drag chain | CPS | Korea |
11 | Air valve | CKD/SMC | Japan |
12 | Confluence | CKD/SMC | Japan |
13 | Cylinder | CKD/SMC | Japan |
14 | FRL | CKD/SMC | Japan |
15 | AC servo motor | Panasonics | Japan |
16 | PLC | Mitsubishi | Japan |
