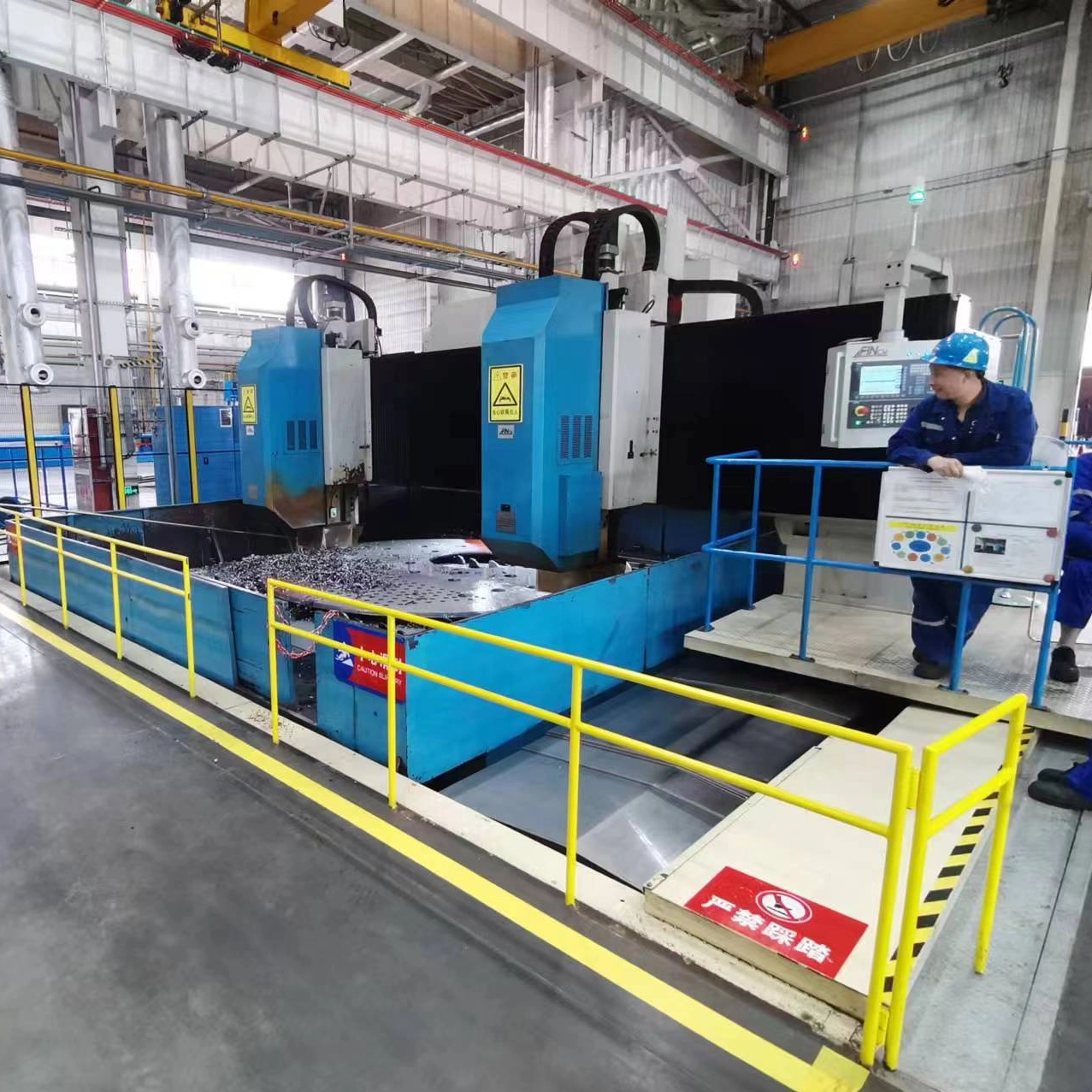

Heavy-Duty Steel Plate CNC Drilling Machine PHD3016S

Overview

The PHD3016S Heavy-Duty Steel Plate CNC Drilling Machine is engineered for the precise, heavy-duty processing of critical steel structural components, including tube plates, baffle plates, and circular flanges essential to the boiler and petrochemical sectors. Built to handle massive workpieces up to 150mm in thickness and 2000mm in clamping diameter, this equipment centralizes through-hole, blind-hole, and step-hole drilling, alongside milling and chamfering, into a single, fluid automated cycle. By integrating a robust hydraulic chuck system, operators can secure large-scale materials firmly, ensuring absolute dimensional fidelity across complex geometries. Whether your facility is managing continuous, large-volume fabrication or transitioning between multi-variety, small-batch runs, the PHD3016S minimizes manual setup times. Once the specific dimensional data is entered into the system, the machine retrieves stored programs and executes the entire sequence autonomously, drastically reducing operator fatigue and cycle times while maintaining strict manufacturing tolerances.

Key Features & Benefits

High-Efficiency Drilling & Tool Management

Powered by a formidable 22KW spindle motor paired with a heavy-duty BT50 spindle, the PHD3016S powers through dense steel alloys with ease. It achieves a maximum drilling diameter of φ60mm when utilizing rapid carbide drills, and φ50mm with standard twist drills. The spindle rotation spans a wide 30 to 3000 r/min, allowing operators to dial in the exact speeds required for optimal material removal. Furthermore, the system supports multi-drill seamless switching and rapid tool changes, significantly cutting down on idle machine time and manual intervention during extended production runs—critical for meeting aggressive delivery schedules.

Structural Rigidity & Stable Workpiece Clamping

At the foundation of this machine lies a high-strength gantry structure, specifically designed to absorb the intense kinetic vibrations generated during heavy steel plate penetration. Complementing this rigid frame is the self-centering hydraulic chuck mounted on the workbench, which grips circular workpieces up to 2000mm in diameter with immense force. This absolute stability eliminates micro-chatter and resonance, ensuring that hole deviations are practically non-existent. This direct reduction in deviation drastically improves the qualification rate of finished parts, particularly for boiler tube plates requiring strict positional accuracy.

Smart Control & Flexible Production Adaptability

Transitioning between distinct production runs is effortless thanks to the intuitive Human-Machine Interface (HMI). The intelligent control system allows for the rapid programming of complex hole patterns and boasts massive storage capacity for thousands of workpiece profiles. This means operators can instantly recall previous setups, enabling a fluid shift from the continuous mass production of standard flanges to the intricate, small-batch customization of specialized non-standard baffle plates, all while minimizing human error and reducing the technical barrier for new operators.

Integrated Cooling & Chip Evacuation

To maintain peak performance during round-the-clock operations, the machine features an advanced thermal management system. It utilizes a continuous plate chain chip conveyor that clears metallic debris at 1m/min, keeping the work area unobstructed. Simultaneously, a dual internal and external cooling mechanism operating at 2.0MPa flushes the cutting zone. This aggressively lowers the cutting temperature at the point of contact, preserving the sharp edge of the carbide tools and extending their operational lifespan.

Core Components & Quality Assurance

To guarantee unyielding reliability and a repeat positioning accuracy of 0.04mm, the PHD3016S is constructed using only premium-grade components sourced from globally recognized manufacturers. This meticulous selection process ensures that every axis movement is fluid and every spindle rotation is perfectly concentric, meeting the exacting tolerance standards of aviation, petrochemical, and industrial boiler applications.

• Linear rolling guide pairs (HTPM/HIWIN): These heavy-duty guides provide frictionless, ultra-smooth axis translation across the X, Y, and Z planes, drastically reducing mechanical wear over years of continuous operation.

• Precision Spindle (Kenturn/Danquan): Engineered for thermal stability, this spindle maintains absolute rotational accuracy even when pushed to 3000 r/min during aggressive milling and drilling cycles.

• Advanced CNC system (KND 1000): Featuring a highly responsive 4-axis control interface, this system translates complex digital blueprints into flawless physical execution, simplifying the operator's daily workflow.

• High-Torque Servo motors & drivers (KND): Delivering immediate and powerful kinetic force to the drive mechanisms, these servos eliminate positioning lag and ensure the gantry stops exactly where programmed.

Note: Should any designated brand experience supply chain disruptions, we strictly substitute only with components of identical or superior industrial grade to prevent any compromise in machine performance or delivery timelines.

Application Scenarios

Boiler Industry

The fabrication of tube plates for industrial boilers requires absolute precision to prevent catastrophic pressure leaks. The PHD3016S delivers a pristine 0.04mm repeat accuracy, ensuring that every drilled hole aligns flawlessly with the corresponding heat exchange tubes. Operators will notice the smooth, burr-free finish of the holes, which translates directly to a tighter, more secure seal during final assembly, safeguarding against steam or water loss under extreme operational pressures.

Petrochemical Industry

In the volatile environment of petrochemical processing, equipment integrity is non-negotiable. This machine excels at processing thick baffle plates in petrochemical reactors and massive circular flanges for pipeline connections. Its ability to seamlessly transition between drilling through holes for massive bolts, blind holes for thermal sensors, and step holes for specialized fluid fittings makes it an indispensable asset for heavy equipment manufacturers looking to consolidate their machining processes.

Custom Steel Fabrication

For structural engineering firms handling diverse, non-standard steel components, agility is key. The machine's vast program memory and rapid hydraulic clamping setup allow operators to process thick-plate structural joints and custom architectural brackets in small batches without losing hours to manual recalibration. The audible hum of the rigid gantry smoothly traversing the 3000mm X-axis is a testament to its capability to handle varied, heavy-duty tasks with refined grace and unyielding power.

Action Call & After-Sales Service

Take Immediate Action

Upgrading your fabrication floor with the PHD3016S means investing in accelerated throughput and uncompromising precision. If you are ready to eliminate production bottlenecks and enhance the dimensional accuracy of your heavy steel components, we invite you to take the next step. Click Inquire to receive a comprehensive, customized technical proposal and pricing quote tailored to your specific facility requirements. Alternatively, add this unit to your Basket to secure priority scheduling for our current inventory (current quantity: 1 unit).

Reliable After-Sales Support

We understand that integrating heavy CNC machinery into your workflow requires dependable backing. Our commitment extends far beyond the initial installation:

• Comprehensive Operator Training: Free technical training sessions to ensure your technicians are fully proficient in CNC programming, tool management, and routine mechanical maintenance.

• Ironclad Warranty Protection: Enjoy a full 1-year warranty covering all core components (including the high-speed spindle and the KND control unit), ensuring your investment is protected.

• Rapid Spares & Consumables: We maintain a ready stock of essential replacement parts, from heavy-duty tool holders to specialized filter cores, minimizing any potential downtime.

• Round-the-Clock Technical Assistance: Our dedicated engineering support team is available 24/7 via online channels to diagnose and resolve any operational anomalies swiftly and effectively.

1、Power supply：3 phases 4 lines    380±10%V    50±1HZ

2、Compressed air pressure: ≥0.8MPa

3、Environment temperature：         0~40°C

4、Environment humidity：             ≤75%
