DJ1250

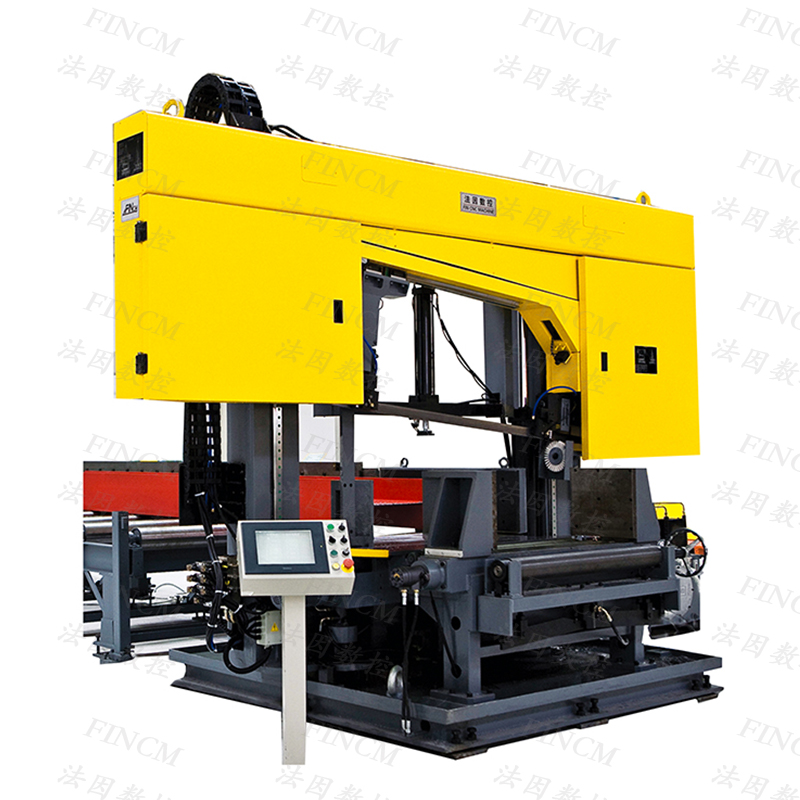

This CNC band sawing machine is designed for precision cutting of H-beams and other structural profiles used in large-scale steel fabrication. It delivers clean, efficient, and fully automated cutting operations for beam ends, miters, or section preparation. With its robust mechanical design, servo-controlled feed system, and intelligent CNC control, the machine enhances cutting accuracy and productivity across industrial fabrication lines.
Ideal for use in structural steel workshops, bridge component manufacturing, and construction steel service centers, it ensures consistent cut quality while reducing labor intensity and operator error.
The machine utilizes a high-strength band blade driven by a frequency-controlled motor. It provides straight and angle cuts with smooth surfaces and minimal burrs, reducing the need for post-processing.
Equipped with a servo-driven feeding trolley and hydraulic clamping arms, the system automatically aligns and fixes beams during cutting, ensuring precision and efficiency even with heavy or long profiles.
An intelligent CNC interface allows users to pre-set cutting length, angle, feed rate, and blade speed. The system also supports job memory and real-time diagnostics for simplified daily operation.
| Item | Specification |
|---|---|
| Applicable Profiles | H-Beams / Channel Steel / Box Beams |
| Beam Height Range | 150 mm – 1250 mm |
| Beam Width Range | Up to 600 mm |
| Cutting Capacity | Depends on blade length and profile section |
| Cutting Angle Range | 0° – ±45° |
| Blade Speed | 20 – 100 m/min (adjustable) |
| Saw Motor Power | 7.5 – 11 kW (depending on model) |
| Feeding System | CNC servo trolley with encoder |
| Clamping Method | Hydraulic adjustable clamping |
| Cooling System | Cutting fluid with internal blade lubrication |
| Control Interface | Siemens CNC / Touchscreen Panel (customizable) |
| Power Supply | 380V / 50Hz / 3-Phase |
| Installation Footprint | ~18 m × 4 m (varies by beam length) |
This CNC band sawing machine is suitable for beam-cutting operations in structural steel manufacturing environments. It performs efficiently in steel plants preparing column ends, bridge girder miters, or modular frame connections. Whether handling straight cuts for vertical assemblies or angled cuts for trusses and joints, the machine provides fast, accurate sectioning with minimal material waste. It supports multi-shift industrial production with high reliability, and integrates smoothly into prefabrication lines for large steel projects.
A: It is designed for H-beams, channel steel, box beams, and other standard structural profiles.
A: Yes, the cutting head allows miters up to ±45°, which is ideal for bracing and frame joints.
A: A servo-controlled feeding system combined with hydraulic clamping ensures accurate beam positioning and consistent cut quality.
A: Absolutely. It is designed to work as a standalone unit or as part of an automated beam processing line.
