The CNC Punching Machine for Angles combines precision engineering, high productivity, and versatility to meet the evolving needs of modern metal fabrication. Its advanced features, including servo-driven control, adjustable stadia, and CAD integration, make it a reliable choice for industries requiring accurate and efficient angle steel processing. With a focus on durability and user-friendliness, this machine delivers consistent results while minimizing downtime and operational costs.
| Quantity: | |
|---|---|
AP16A-12
Angle size | 38x38x4~150x150x12mm | |
Max. raw material angle profile length (m) | 12 | |
Max. punching dia. | Φ25.5mm | |
Varieties of holes | 2 | |
Punching holes' back mark value | The side length of angle steel≥40~63mm | Stadia of holes ≥20mm |
The side length of angle steel≥70~100mm | Stadia of holes ≥32mm | |
The side length of angle steel≥110~125mm | Stadia of holes ≥42mm | |
Min. distance between hole and edge | 25mm | |
AC servo motor power | X axis(side baffle) | 1.5KW |
X axis(change of stadia) | 1KW | |
Max. stroke of side baffle | 8~12m | |
Positioning speed of side baffle | 20m/min | |
The CNC Punching Machine for Angles is a high-performance industrial solution designed for automated punching, marking, and shearing of angle steel profiles. Engineered to meet the demands of modern manufacturing, this machine excels in producing precise holes and markings on angles ranging from 38x38x4mm to 150x150x12mm , with a maximum raw material length of 12 meters . Equipped with advanced AC servo motors and a CNC control system, it ensures consistent accuracy and efficiency in applications such as power transmission towers, steel structures, and infrastructure projects.
Key capabilities include:
Dual-hole punching (round and slot holes) with a maximum diameter of φ25.5mm .
Adjustable stadia (hole spacing) based on angle size: ≥20mm for 40-63mm angles, ≥32mm for 70-100mm angles, and ≥42mm for 110-125mm angles .
Closed-loop positioning with a side baffle stroke of 8–12 meters and a positioning speed of 20m/min .
This machine integrates seamlessly with CAD/CAM software, enabling quick programming and real-time process monitoring, making it ideal for high-volume production environments.
The machine accommodates angle steel profiles from 38x38x4mm to 150x150x12mm , supporting raw material lengths up to 12 meters . Its modular design allows easy adjustment for different angles, ensuring versatility across industries.
Dual-hole punching: Supports two hole varieties (e.g., round and slot) with a maximum diameter of φ25.5mm .
Adjustable stadia: Hole spacing is configurable based on angle dimensions (≥20mm for 40-63mm angles, ≥32mm for 70-100mm angles, and ≥42mm for 110-125mm angles) .
Minimum hole-edge distance: Maintains a consistent 25mm gap between holes and material edges , ensuring structural integrity.

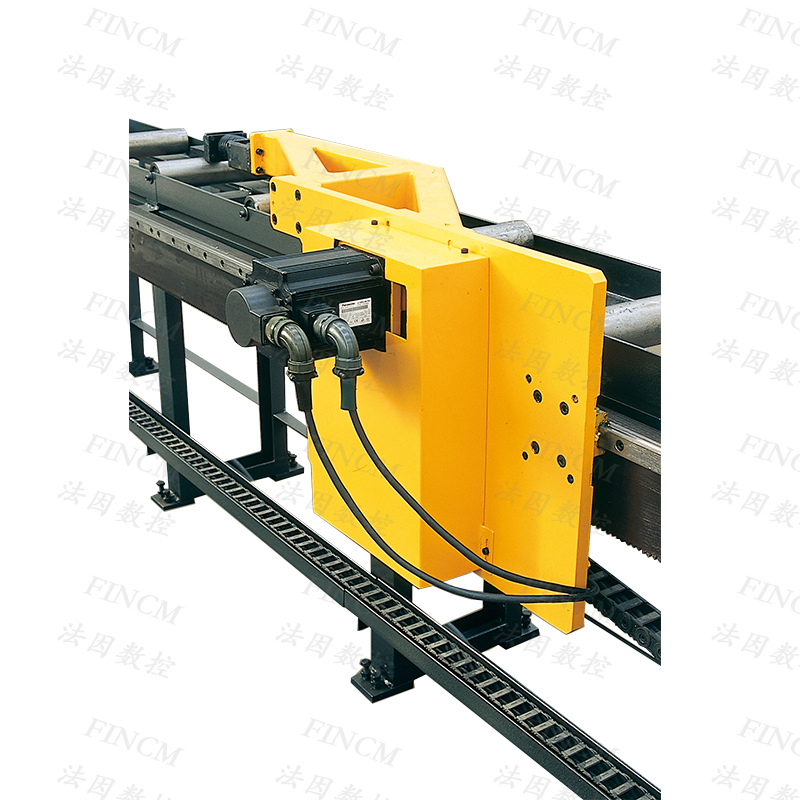

AC servo motors power the X-axis (side baffle: 1.5kW; stadia adjustment: 1kW) , delivering smooth motion and ±0.1mm positioning accuracy .
Closed-loop feedback via photoelectric encoders ensures real-time error correction, enhancing repeatability .
Side baffle positioning speed: 20m/min , reducing idle time during material handling.
Punching rate: Up to 1,000 holes per hour , optimizing productivity for large-scale projects.
Multi-language CNC control panel supports easy programming and workpiece visualization .
Direct integration with CAD/CAM software (e.g., AutoCAD, Tekla) eliminates manual data entry .
Heavy-duty steel frame ensures rigidity and durability during high-load operations.
Hydraulic and pneumatic components from reputable brands (e.g., ATOS, Yaskawa) guarantee reliability .
The CNC Punching Machine for Angles is widely used in:
Fabrication of angle steel components for transmission towers, substation structures, and communication masts .
Supports high-strength materials (e.g., Q420) for long-term outdoor applications .
Production of structural steel elements for buildings, bridges, and industrial facilities.
Enables precise hole patterns for bolted connections and load-bearing joints .
Manufacturing of warehouse racks, shelving systems, and conveyor components .
Efficient processing of angles for custom storage solutions.
Q1: What is the maximum angle size this machine can process?
A1: The machine handles angles from 38x38x4mm to 150x150x12mm , with a maximum raw material length of 12 meters .
Q2: Can it punch both round and slot holes?
A2: Yes, it supports two hole varieties (e.g., round and slot) with a maximum diameter of φ25.5mm .
Q3: What is the positioning accuracy?
A3: The side baffle achieves ±0.1mm positioning accuracy , while hole spacing adjusts to ≥20mm–42mm based on angle size .
Q4: How long does it take to program a new workpiece?
A4: Programming time varies but is typically reduced by direct CAD/CAM integration, allowing rapid setup .
Q5: What maintenance is required?
A5: Regular checks of lubrication, hydraulic fluid levels, and punch/die wear are recommended. Replacement parts (e.g., punches, dies) are readily available .
